An IAM program without a roadmap is a collection of tools without a strategy. This guide combines the strategic and tactical layers of IAM implementation into a single resource: the five phases that define IAM maturity, the eight steps that translate each phase into operational reality, and the implementation details that most teams discover too late. Whether you are starting from a blank slate or modernizing a legacy program, the framework here gives you a clear sequence, measurable milestones, and the context to make good decisions at each stage. NIST guidelines, HIPAA requirements, and GLBA mandates all inform what a mature IAM program must demonstrate. C1 accelerates every phase.

Identity and access management is the operational foundation of enterprise security. Every compliance audit, every zero-trust initiative, and every insider threat program depends on IAM working correctly. But IAM programs are complex, cross-functional, and long-running. Without a structured roadmap, even well-funded programs stall in the early phases, accumulate technical debt, and fail to deliver the security outcomes they were built to achieve. This guide gives you the complete picture: a five-phase IAM roadmap that defines what maturity looks like at each stage, and an eight-step IAM implementation plan that translates each phase into concrete action. The frameworks here are informed by NIST guidance on identity management, the access control requirements of HIPAA and GLBA, and the operational realities of organizations that have successfully built and scaled IAM programs.

Before you start: prerequisites and stakeholder alignment#

Three elements must be in place before any implementation work begins. Organizations that skip this foundation spend the first several months of their IAM rollout re-doing decisions that should have been made upfront.

Define clear success metrics#

Vague goals produce vague results. The most effective IAM programs define specific, measurable targets from day one. Examples that work:

Zero standing privileges: No human or non-human identity holds persistent privileged access it is not actively using.
24-hour offboarding SLA: All access for a departing employee or contractor is revoked within 24 hours of the offboarding trigger.
100% MFA coverage: Every identity accessing production systems authenticates with multi-factor authentication. No exceptions.
Access review completion rate: 95% or more of scheduled access reviews completed on time.

These metrics create accountability and give you the data you need to demonstrate program value to leadership.

Involve the right stakeholders from the start#

IAM is not a security project. It is a cross-functional program that requires active participation from IT, HR, department heads, and security leadership. HR owns the authoritative data about employee status and role changes. Department heads own access decisions for their systems. IT owns the technical infrastructure. Security owns policy. None of these groups can build a functional IAM program without the others. Identify a named owner from each stakeholder group before implementation begins. Establish a governance structure with clear decision rights so that disagreements about policy do not stall technical work.

Secure executive sponsorship#

IAM programs require resources, authority, and organizational change. Without executive sponsorship, IAM initiatives stall when they encounter resistance from business units that do not want their access removed, from vendors who push back on new access controls, or from application owners who deprioritize IAM integrations. Executive sponsorship also matters for compliance. When an auditor asks who is accountable for IAM governance, the answer should be a named executive, not a security analyst.

The 5-phase IAM roadmap#

The five phases below define the maturity arc of an IAM program from its foundations through full Zero Trust modernization. Each phase builds on the previous one. Organizations that try to skip phases, deploying governance tooling before they have a clean identity inventory, for example, create more work than they save.

Phase 1: Visibility and discovery#

What it covers: Mapping your complete identity ecosystem before making any architectural decisions.

You cannot secure what you cannot see. Phase 1 is about building the authoritative picture of every identity your organization manages and every system those identities can access.

Step 1: Discovery and identity inventory#

Catalog every identity in your environment:

Human identities: Employees, contractors, vendors, service accounts tied to individuals.
Non-human identities (NHIs): Service accounts, API keys, OAuth tokens, machine credentials, and any other non-human identity that holds permissions. NHI governance is frequently the most surprising part of this exercise: most organizations discover far more non-human identities than they expected, with permissions that no one remembers granting.
Orphaned accounts: Accounts belonging to former employees, completed vendor engagements, or decommissioned services. These accounts represent standing access with no authorized owner.
Shadow IT: Applications and services that users have accessed or provisioned outside formal IT processes. Shadow IT applications often hold significant data and are connected to identity providers in ways the security team does not know about.

Map critical assets in parallel with the identity inventory. Which systems contain sensitive data? Which systems are required for regulatory compliance under HIPAA, GLBA, or SOX? These systems get priority attention in subsequent phases.

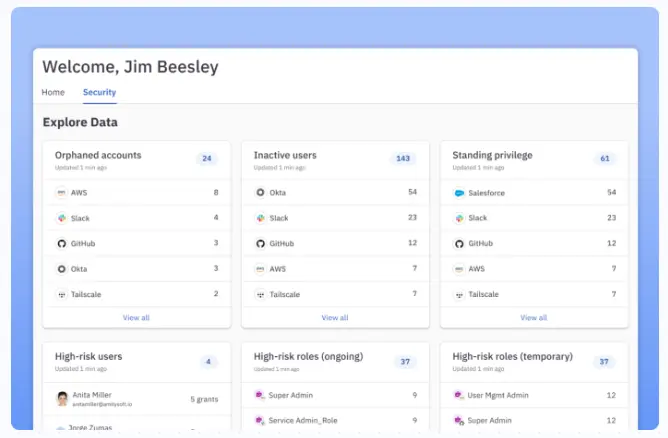

What good looks like: A complete, queryable inventory of all human and non-human identities, all access grants, and all connected systems. This inventory is the source of truth for every subsequent IAM decision.

Common pitfall: Treating discovery as a one-time project rather than an ongoing process. Identities and permissions change continuously. Discovery needs to be automated and continuous, not a quarterly manual audit.

Phase 2: Centralization and foundation#

What it covers: Building the architectural foundation that all subsequent phases depend on.

With a clear identity inventory in hand, Phase 2 establishes the core infrastructure: a centralized identity provider, universal authentication standards, and the foundational access policies that all subsequent automation will enforce.

Step 2: Clean up and data hygiene#

Before building on the foundation, remove the accumulated debris:

Orphaned accounts: Disable and delete accounts with no authorized owner. Each orphaned account is a potential entry point.
Role consolidation: Review existing roles for redundancy and excessive scope. Roles that were created for specific projects and never removed accumulate permissions that no one is actively using.
Excessive privilege revocation: For accounts with more access than their role requires, scope permissions down to least privilege. This is a significant undertaking that requires coordination with application owners. Plan accordingly.

Step 3: Design the policy framework#

Before configuring any tools, define the policies those tools will enforce:

Authentication standards: Define the minimum authentication requirements for every access tier. Single sign-on (SSO) should be the default for all application access. Multi-factor authentication should be required for all privileged access and for all access to systems containing sensitive data.
Least privilege: Define what least privilege means for each role and system. This requires collaboration with application owners and department heads, not just security policy decisions.
Authorization model: Choose between role-based access control (RBAC), attribute-based access control (ABAC), or a combination. RBAC is simpler to implement and audit. ABAC provides finer-grained control for complex access scenarios. Most mature programs use both. See authentication vs. authorization for a foundational treatment of these concepts.
Birthright access: Define the baseline access every new employee receives on day one based on their role, without requiring manual provisioning requests.

Step 4: Select and configure the tech stack#

The core IAM technology stack consists of three components that must work together:

Identity provider (IdP): The authoritative source for identity and the enforcement point for authentication policy. The IdP connects to your HRIS to pull authoritative employee data and feeds identity information to every downstream system.
Identity governance and administration (IGA) platform: The layer that manages the lifecycle of access rights: provisioning, access reviews, policy enforcement, and audit trails. C1's identity governance solution operates at this layer.
Privileged access management (PAM): The controls for elevated and administrative access: credential vaulting, session recording, JIT provisioning for privileged accounts.

Integration sequence matters. Connect the IdP to your HRIS first so that identity data is authoritative before you build provisioning workflows on top of it. Then integrate target applications, prioritizing high-risk and compliance-relevant systems first. A system containing HIPAA-regulated data or financial reporting data subject to SOX gets integrated before a project management tool.

What good looks like: Universal SSO, MFA enforced for privileged and sensitive access, a clean role structure, and an integrated tech stack connected to authoritative HR data.

Common pitfall: Selecting tools before defining policy. Organizations that choose an IGA platform before they know what policies it needs to enforce spend significant time reconfiguring the platform or working around its constraints.

Phase 3: Lifecycle automation#

What it covers: Automating the joiner-mover-leaver process so that access stays accurate without manual intervention.

Manual provisioning and deprovisioning does not scale and does not meet the SLA requirements of modern IAM programs. Phase 3 automates the full identity lifecycle management process.

Step 5: Automate the identity lifecycle#

Three lifecycle events require automation:

Onboarding (Joiner): When a new employee joins, birthright access provisions automatically based on role and department. No manual ticket required. No delay between hire date and access.
Role changes (Mover): When an employee changes roles, the automation must both grant the new role's access and revoke the previous role's access. Granting new access without revoking old access is the primary mechanism by which privilege accumulation occurs. This is often the most technically complex lifecycle event to automate because it requires coordination between HR systems, the IdP, and every downstream application.
Offboarding (Leaver): When an employee leaves, all access revokes within the defined SLA. No manager needs to file a ticket. No application owner needs to manually disable an account. The automation handles the full scope of access revocation across every connected system.

What good looks like: Access provisioning and deprovisioning that happens automatically within defined SLAs, with zero manual steps required for standard lifecycle events.

Common pitfall: Automating onboarding and offboarding but not the Mover event. Role change automation is harder to implement but more important for preventing privilege accumulation, which is the primary driver of excessive permissions in mature organizations.

Phase 4: Governance and compliance#

What it covers: Building the ongoing governance processes that keep access accurate and produce the audit evidence compliance frameworks require.

Automation handles the events you can anticipate. Governance handles the drift that accumulates between those events: permissions that were appropriate when granted and are no longer appropriate today.

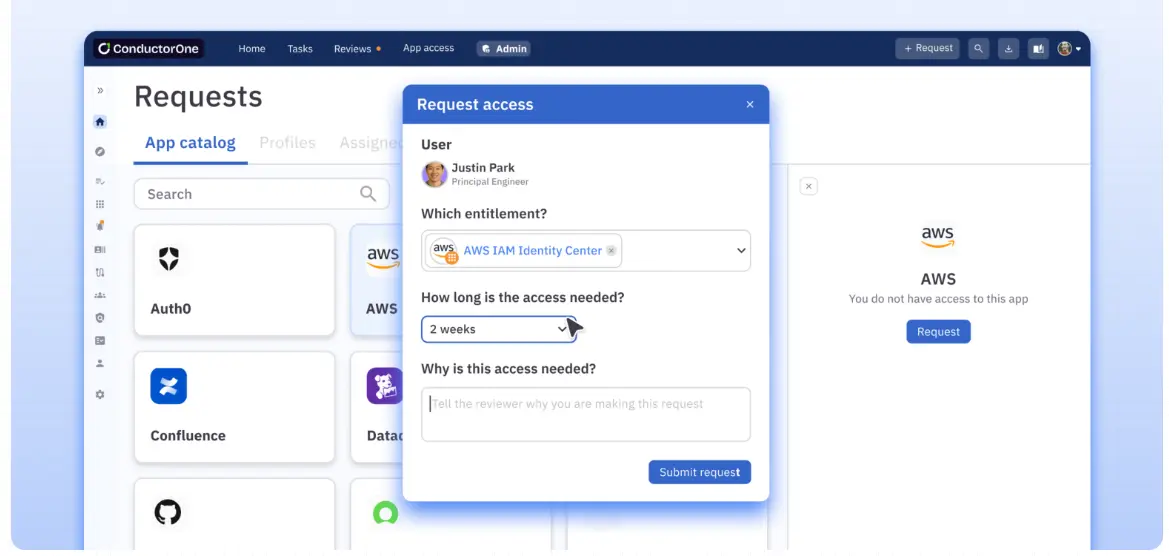

Step 6: Implement JIT access#

Just-in-time access eliminates standing privileges for scenarios where persistent access is not required. Instead of holding admin access continuously, users request access when they need it, receive a time-limited grant, and access revokes automatically when the task is complete or the time window closes. Zero standing privilege is the target state. The gap between current state and target state defines the JIT implementation roadmap. Implementation considerations:

Frictionless request workflows: JIT access fails if the request process is too cumbersome. Users will find workarounds, or they will request access far in advance and hold it longer than needed. Requests should be completable in under 60 seconds from Slack, Teams, a web portal, or CLI.
Automated approvals for low-risk requests: Not every JIT request needs human approval. Policy-based auto-approval for low-risk access requests reduces friction without compromising control. High-risk and sensitive-system requests route to human approvers.
Privileged access as the starting point: Start JIT implementation with privileged access. The blast radius of compromised standing admin credentials is large enough to justify the implementation effort even if other access types remain persistent initially.

Step 7: Establish access reviews and governance#

Access reviews are the mechanism for catching and correcting drift between what users are authorized to have and what they actually have. Effective access reviews require:

Automated scheduling: Reviews should run automatically at intervals defined by access sensitivity. Privileged access: monthly or quarterly. Standard access: semi-annual or annual. Vendor access: at the frequency appropriate to the vendor's risk tier.
Context for reviewers: Reviewers who are presented with a list of names and asked "should this person have this access?" without additional context make poor decisions. Surface relevant context: how long the user has had the access, whether they have used it recently, what their current role is.

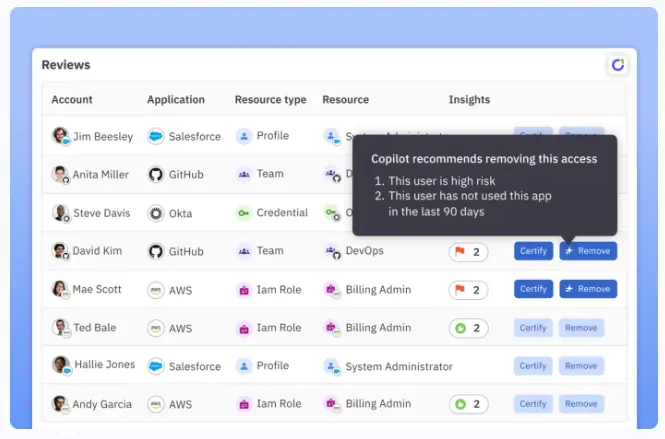

AI-powered recommendations: C1 Copilot analyzes access patterns and surfaces recommendations for each review decision, reducing review time and improving decision quality.
Separation of duties (SoD) enforcement: Identify and remediate combinations of permissions that, held by a single identity, create fraud or error risk. SoD violations are a standard audit finding in SOX and GLBA environments.

What good looks like: Automated access reviews running on schedule, with high completion rates, AI-assisted decision-making, and documented outcomes. IGA success metrics provides a framework for measuring governance program effectiveness.

Common pitfall: The set-and-forget mentality. Organizations that configure governance workflows and then treat them as permanent miss the need to refine policies as the organization changes. Schedule policy reviews every 6 to 12 months.

Phase 5: Modernization and Zero Trust#

What it covers: Moving from reactive access management to continuous, identity-centric authorization.

Phase 5 is where IAM programs become strategic differentiators rather than compliance checkboxes. Zero Trust architecture treats every access request as untrusted by default, verifying identity, device context, and policy at each request regardless of where the request originates. Key modernization initiatives in this phase:

Zero Trust enforcement: Every access request is evaluated against identity and policy, not network location. VPN access is replaced or supplemented with identity-aware access controls that apply regardless of how a user is connected.
Non-human identity governance: Service accounts, API keys, and machine credentials are governed with the same rigor as human identities. NHI governance at this phase means automated discovery, policy enforcement, and lifecycle management for every non-human identity.
Continuous authorization: Access is evaluated continuously, not just at login. Session context changes, such as a device falling out of compliance or a user accessing an unusual resource, trigger re-evaluation rather than waiting for the next authentication event.
AI-powered anomaly detection: Behavioral baselines for every identity allow the system to detect and flag access patterns that deviate from normal, surfacing potential compromises before they become incidents.

What good looks like: No standing privileges. Every access request evaluated at the identity layer. Non-human identities governed and auditable. Continuous monitoring surfacing anomalies in real time.

What most teams forget#

Even well-planned IAM implementations encounter the same set of overlooked details. Build these into your plan from the start.

Emergency access protocols: Every IAM program needs break-glass procedures for scenarios where normal access paths are unavailable. Break-glass accounts should exist with credentials stored offline, access should trigger immediate alerts, and every use should be logged and reviewed. Do not design these after you need them.

Legacy authentication protocol blocking: SSO and MFA enforcement is circumvented by legacy protocols (IMAP, POP3, Basic Auth) that bypass modern authentication flows. Block legacy authentication at the protocol level during or immediately after Phase 2. Organizations that enforce MFA without blocking legacy protocols have a large gap in their authentication coverage.

Support capacity planning: Access management changes generate support tickets. Users who cannot access systems they expect to have access to call the helpdesk. Plan for a support volume spike during every major rollout phase and staff accordingly. The spike is temporary, but failing to plan for it creates the impression that the IAM program is breaking things.

Negative testing: Test that unauthorized access is actually blocked, not just that authorized access works. Negative testing, attempting to access systems with credentials that should not have access, is frequently skipped. The result is policy configurations that look correct but have gaps that a real attacker would find.

API rate limits: Automated provisioning at scale hits API rate limits in downstream applications. Plan for rate limiting from the start: stage provisioning workflows to spread requests over time, and build retry logic into automation. Discovering rate limits during a large onboarding event is a painful way to learn this lesson.

Mover complexity: Role change automation must remove old access before or simultaneously with granting new access, not after. A transition period where a user holds both their old role's access and their new role's access is a privilege accumulation event. In systems with SoD requirements, it may also be a violation.

Accelerate your IAM roadmap with C1#

C1 is the platform organizations use to move faster through the IAM maturity curve. C1's platform covers JIT access, access reviews, access controls, lifecycle automations, NHI governance, and compliance and risk management in a single unified platform, with 300+ pre-built connectors and a Unified Identity Graph that maps every identity to every permission across every connected system. The results are documented.

DigitalOcean: 95% reduction in compliance time#

DigitalOcean needed to scale its identity governance program to keep pace with rapid growth without proportionally scaling the security team. Using C1, DigitalOcean reduced compliance-related time investment by 95%, automating the access review and audit evidence workflows that had previously required extensive manual effort.

Ramp: 95% of administrative access actions automated, JIT for privileged access#

Ramp implemented C1 to govern access for a fast-growing team with significant compliance obligations. C1 automated 95% of administrative access actions and enabled just-in-time access for privileged accounts, eliminating the standing admin credentials that represented Ramp's highest-risk access category. The result was a significantly reduced attack surface with no degradation in operational velocity.

Instacart: SOX compliance with dramatically less manual effort, 95% of privileged entitlements moved to JIT#

Instacart used C1 to meet SOX access control requirements at scale. C1 automated the access review and audit evidence workflows required for SOX compliance, and moved 95% of privileged entitlements from standing access to just-in-time grants. The compliance program that previously required significant manual effort became largely automated, freeing the security team to focus on strategic work rather than audit preparation. For a deeper look at how to measure IAM program success, see the IGA success metrics guide and identity governance best practices. For the risk assessment that should precede implementation planning, see the IAM risk assessment guide. For a survey of the frameworks that inform IAM program design, see the IAM frameworks guide.
